Small spray dryerProduct description:
Apply to universities, Research Institute and food medicine chemical enterprise laboratory production of micro particles of all solutions such as emulsion, suspension has extensive applicability.,Suitable for drying sensitive substances, such as biological products, biological pesticides, enzymes and so on. Because the ejected material is only heated when it is sprayed into a fog, and is instantaneously heated, the active material remains the same after its drying.
A variety of fields: beverages, spices and pigments, milk and egg products, vegetables and plant extract, pharmaceutical synthesis of heat sensitive material plastics, polymers and resins, fragrances, blood products, Tao Hechao, conductor and biochemical products, dyes soaps and detergents, food, adhesives, oxide, bone and tooth powder etc..
Small spray dryerMain features:
●Originally produced nozzle, high efficiency.
●Color large touch screen operation, automatic control and manual control combination, Chinese and English panel, parameter LCD display.
●Real-time regulationPIDConstant temperature control technology, accurate temperature control, heating and temperature control accuracy±1℃.
●Spray, drying and collecting devices are made of transparent, high quality, high temperature resistant borosilicate glass,The whole spray drying process is visible.
●Two atomization structure of fluid spraying, high precisionThree hundred and sixteenStainless steel materials, the size of powder injection is normal distribution, good liquidity.
●When the nozzle is blocked, the injector is automatically cleared (through needle) and the frequency is adjustable, so as to ensure the continuity of the experiment.
●The feed quantity can be adjusted by feeding peristaltic pump.
●Special protection function, fan does not start, heater can not start.
●Built in imported oil-free air compressor, noise less than50db.
●Equipped with air inlet filter to make sure the sample is pure.
●After drying products, uniform particle size,95%Above dry powder in the same particle size
|
Model |
om - 1500 |
om - 1500a |
|
|
body material |
Cold rolled sheet |
Three hundred and fourStainless steel(Customizable316l） |
|
|
Corresponding sample |
Water solubility |
Corrosive solution |
|
|
performance |
Water evaporation |
Maximum1500 - 2000ml / hMinimum quantity of material to be customized50ml |
|
|
Temperature setting range (automatic control) |
Thirty～300℃(Inlet temperature)\30～140℃(outlet temperature) |
||
|
Temperature regulation accuracy |
Inlet temperature±1℃ |
||
|
Range of dry air regulation |
Zero～0.7M3/min |
||
|
Range of spray air pressure |
Zero～0.3MPa |
||
|
Delivery pump flow range |
5 - 100prm(adjustable speed) |
||
|
|
temperature |
Inlet temperature and outlet temperature output(4～20ma) |
|
|
Exhaust gas filter |
Pulse bag filter (optional) |
||
|
Glass piece |
High borosilicate glass material, high temperature resistance, no pollution test |
||
|
Temperature regulator |
PIDDigital temperature controller |
||
|
LCD touch panel |
Blower, heater, liquid delivery pump, through needle, jet switch |
||
|
Temperature sensor |
pt - 100 |
||
|
heater |
4.5KW 220V |
||
|
Feed way |
Peristaltic pump feed |
||
|
Air compressor for spraying |
Imported air compressor |
Imported air compressor |
|
|
Suction fan |
Rotary fan brushlessDCmotor |
||
|
Air inlet treatment |
Filter (available) |
||
|
injector |
Standard configurationOneCustomizable07/1.0/1.5/2.0/2.2etc. |
||
|
The air is connected with the caliber of the spray |
external diameter7mm |
||
|
Air pressure for spray |
Bassoon0.3Mpa |
||
|
Exhaust connection caliber |
50mm |
||
|
Safety protection function |
The temperature of the inlet and outlet is too high, the fan will start automatically, and the temperature should be lowered before turning off the power supply of the machineFiftyProtect the heater from damage. |
||
|
Specifications |
Outline size |
x650 550 (w) (d) x1250 (h) mm |
|
|
Net weight |
about110kg |
||
|
Power Supply |
220v |
||
|
Factory standard configuration |
A main engine, an exhaust pipe, a atomizing chamber, a cyclone separator, a material collection bottle, a waste collection bottle, a set of large band clamps and a medium band clamp,TwoA small band of a set of instructions, a fuse;TwoOne warranty card, one set of silica gel delivery tubeOneRoot and spray air pipe. |
||
|
Matching |
Infrastructure |

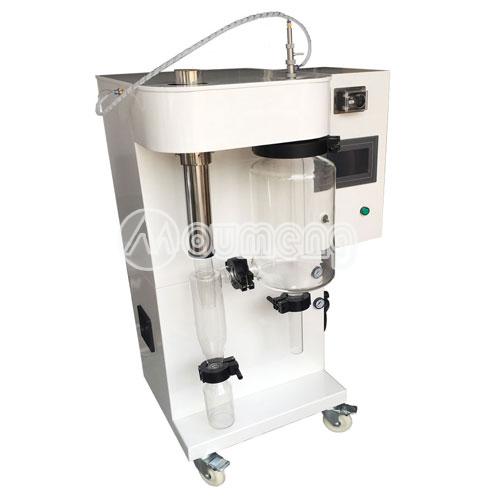

Routine laboratory type |

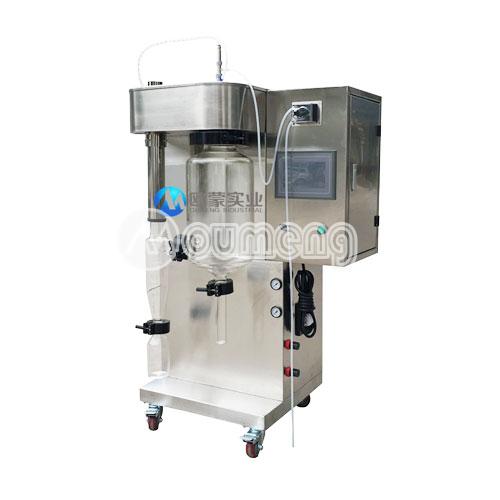

Upgraded stainless steel type |
|
Customized paragraph |
Our company specializes in the production, support customized various types of spray dryer, experimental, production, granulation, organic solvents, explosion-proof and so on |
||
